HydroClear™ 400
Water Recycling System

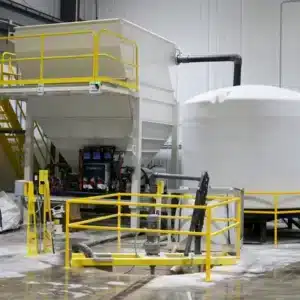

What if you could eliminate 95+% of your water bill each month? You can, with the new HydroClear™ PRO 400 system from Park Industries®. Designed to recycle up to 325 gallons of water per minute at a sustained flow rate, this system provides large fabrication shops with clean, recycled water to fuel your fabrication’s water needs now and into the future.
Automated Chemical
Dosing SystemMechanical Pit
Stir System90%+ Water
Reduction
Choose your Region
Please choose your region and fabrication type below.
Select the feature you'd like to learn about or slide through them below.
Plate Design
The system include a unique, honeycomb, plate design. As water is forced through the plates, the honeycomb design reduces water turbulence allowing the particles to settle faster, which in turn, allows for more water flow. The honeycomb plate design removes up to 95% of the solids.
Chemical Dosing
Set the parameters and let the system monitor and adjust itself to manage pH levels, bromine, and flocculant chemicals. The chemical dosing parameters can be easily adjusted from the touchscreen.
Repress Pumps
Dual 15 hp Repress Pumps are included in the HydroClear PRO 400. With redundant repress pumps you have the confidence that you will always have the amount of water that you need to supply your shop.
Advanced Controller
The Advanced Controller found on the HydroClear™ PRO 400 system presents a real-time metrics dashboard on the intuitive, touchscreen display, allowing fabricators to quickly and easily monitor the system’s performance.
Typhoon Pit Mixer
The standard, Typhoon™ Pit Mixer uses high-pressure water to keep solids suspended in the pit improving chemical performance and reducing the need to clean your pit. The Typhoon agitates the water to ensure solids are in suspension allowing the slurry pump to remove particles.
PitBoss™ Pit Mixer (optional)
The PitBoss™ is an optional mechanical, blade-operated pit stir system that stirs the slurry pit water keeping solids suspended increasing chemical performance and eliminating the need to clean the pit.
Automatic Purge
The purge valve is set to the time and duration you select and automatically removes the slurry to ensure optimal machine uptime.
Environmental Steward
The HydroClear PRO 400 allows you to recycle 95%+ of your shop’s water usage and gives you the confidence that you are following the long list of regulations and ordinances as it pertains to industrial water usage.
Watch Videos
Key Features
- Environmental Steward
The HydroClear™ Systems utilize a closed loop recycling system that will enable you to reduce your water consumption by as much as 95% while being an environmental steward. As a responsible manufacturer, take care of your shop and the environment by installing a HydroClear™ Series Water System from Park Industries®.
- Effective Water Management
Water is a critical element for your machines. Managing water in your fabrication shop is critically important to ensure high efficiency and productivity.
Park Industries® provides a variety of water system solutions to ensure you have consistent, high quality water flow to your equipment. The HydroClear™ PRO solutions will transform your shops water consumption and water quality all while significantly reducing your water bill. The cost savings are huge. With a HydroClear™ PRO system from Park Industries®, you could potentially reduce your water consumption upwards of 95% and your water bill by nearly 95%. It positively Impact your bottom-line as well as the environment.
Specifications
| Select up to 3 models to compare key specs | HydroClear™ 400 | |
|---|---|---|
| Gallons Per Minute | 325 | |
| Controller | Advanced (Touchscreen) | |
| Repress Pump Motor | Dual Motors - 15 hp | |
| VFD | Yes | |
| Slurry Pump Motor | 5 hp | |
| Sludge Skids | 4 | |
| Tank Finish | 2 Part Epoxy Paint and Galvanized | |
| Footprint including clearance (L x W x H) | 26.1' x 32.1' x 17' | |
| Height with Ceiling Kit | NA | |
| Weight | Tower: 8720 lbs. Cone Bottom Tank: 1100 lbs. | |
| Sustained Flow Rate (GPM) | 325 | |
| Peak Flow Rate (GPM) | 580 | |
| Endurance at Peak Flow Rate | 16 minutes |
