How To Replace The Photo eye on Titan 4K

Guide Number: SG00258 | Printer Friendly Version | View Safety Disclaimer

Skill Level

Level 1

Fairly easy task, requires minimal mechanical/electrical experience.

Time to Complete: 15 min

Guide on how to replace the photo eyes for Titan 4K and 3K.

Scan to View on Mobile Device

There is a printer friendly PDF version below.

● Allen key set
● Socket set

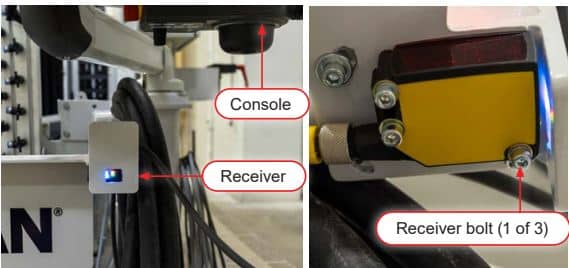

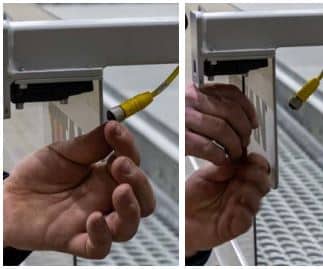

Locate the photo eye receiver adjacent the operator console; disconnect the photo eye receiver cord, then the receiver.

Install a new receiver; complete the same steps with the sender located on the away-side of the machine.

Adjust the arms, splash shields, and photo eyes as necessary to line up the transmitter and receiver

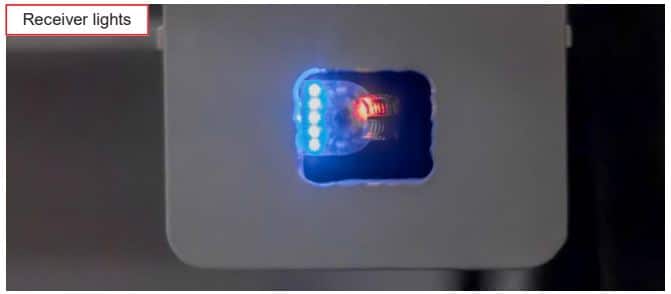

5 blue lights indicate optimal alignment between the transmitter and receiver.

Clear the alarm list.

If you need additional help to align the photo eye see our video – Resetting & Aligning Photoeyes.

Last updated: July 12, 2024
