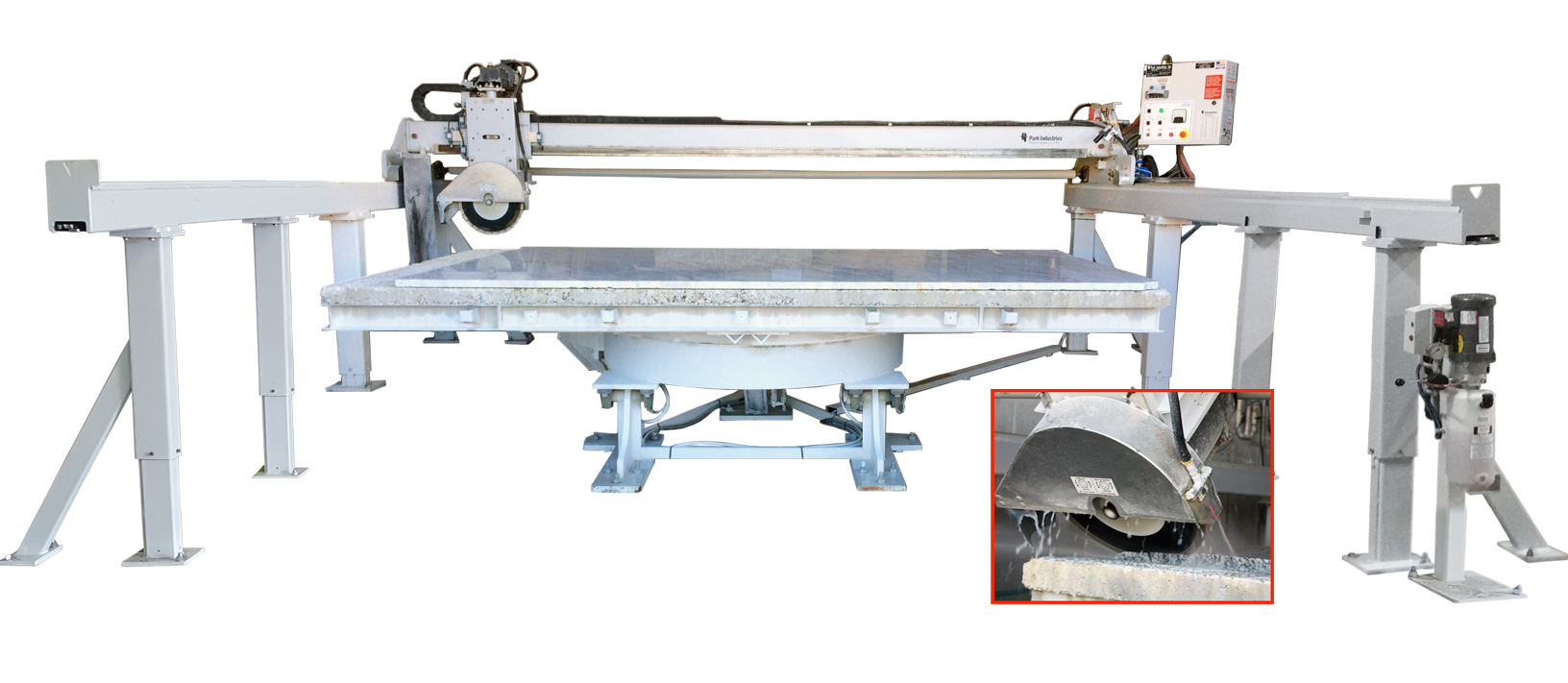

SIERRA®
Bridge Saw
Don’t let the value-price fool you. The SIERRA® Bridge Saw from Park Industries® is built and designed for heavy-duty performance and reliable results. With up to a 16″ diamond blade the SIERRA® can cut stone up to 3-3/4″ thick.
You simply won’t find a better priced, better performance, diamond gantry bridge saw.
0-47°
MITERValue
PricedTILT TABLE WITH
360° Rotation
Choose your Region
Please choose your region and fabrication type below.
Select the feature you'd like to learn about or slide through them below.

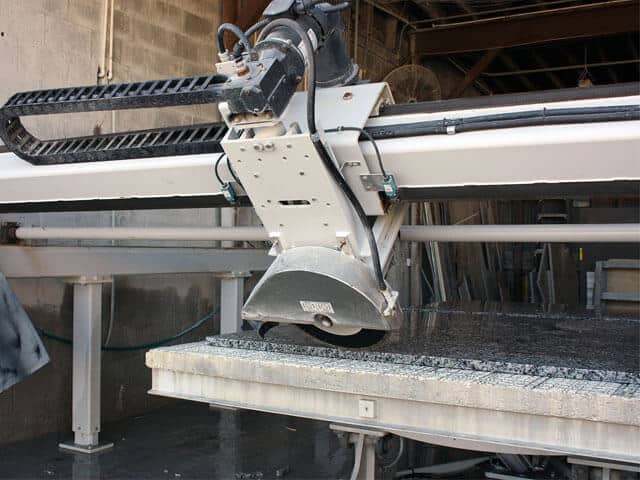

0-47° Miter
The SIERRA® bridge miter capabilities produce flawless and precise 0-47° miter cuts.
Hydraulic Tilt Table (optional)
360 degree manual rotation, hard stop locations every 45 degrees, central grease location, 0-70 degree powered tilt with air brakes. (Optional Feature)

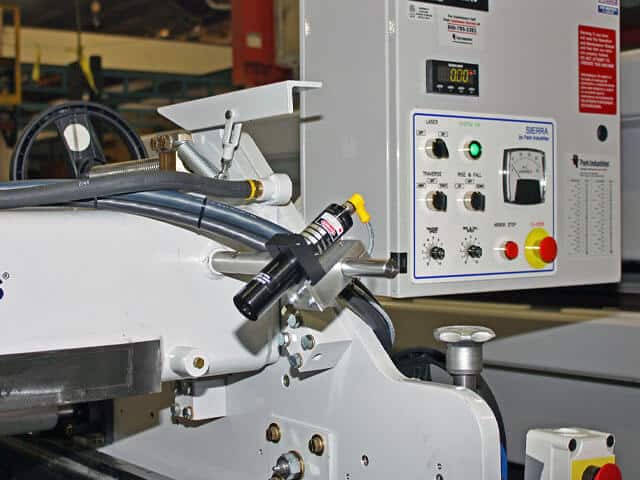

LASER GUIDED SAWING
Utilize the Laser Positioning System for a projected saw path to cut accurately and confidently.

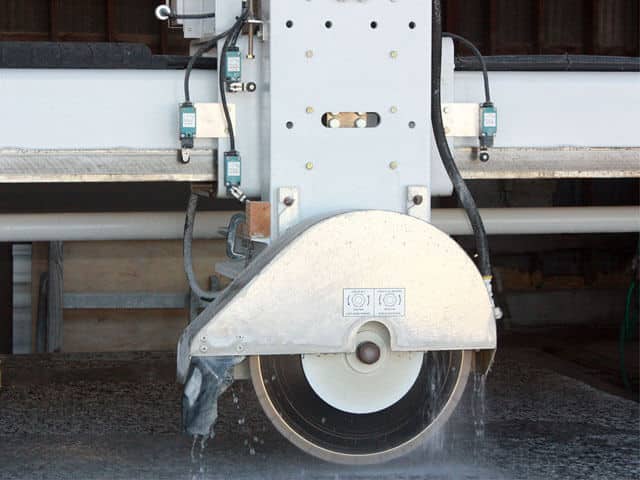

15 HP ARBOR MOTOR
The SIERRA® utilizes a standard 15 hp AC Arbor motor with 1725 RPM.

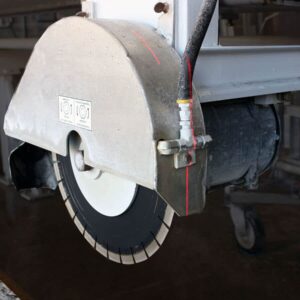

CUT UP TO 3-3/4" Depth
The SIERRA® offers blade flexibility - utilize a 14" blade for a maximum sawing depth of 2-3/4" or a 16" blade for a maximum sawing depth of 3-3/4".
Watch Videos
Key Features
- Precision Sawing and Mitering

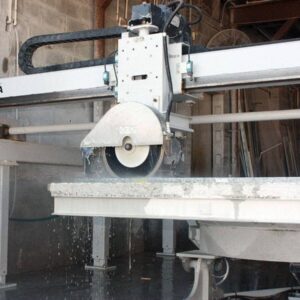

The ruggedly designed SIERRA® Bridge Saw offers dependable, precise cutting on a bridge saw that is built to last, for a value-priced solution. Saw operators gain the flexibility of cutting with a 14″ blade or a 16″ blade (for a maximum sawing depth of 3-3/4″) as well 0-47° miter cutting capabilities for flawless mitered parts.
- Easy Operation
With simple push-button controls, a hand-held pendant for directional control and the laser-light guide on the bridge, the SIERRA® Bridge Saw is easy to set up and operate. It’s built to perform with minimum training and maintenance. The SIERRA’s Laser Position System projects an accurate saw path which allows operators to make any cut needed with confidence.

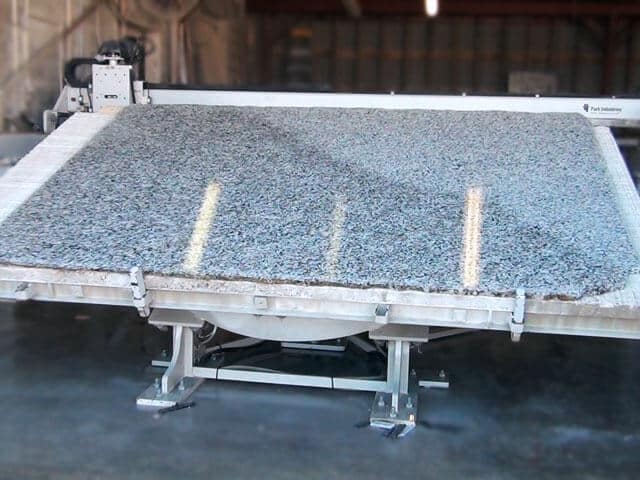

- Tilt Table For Ease of Slab Loading
Also offered on the SIERRA® Bridge Saw is a Hydraulic Tilt Table (optional) with 360° rotation for ease of loading and material handling. Designed with operators in mind it provides 360 degree manual rotation, hard stop locations every 45 degrees, central grease location, air brakes, and 0-70° powered tilt.
- Features & Benefits
- 0-47° degree bridge miter
- Laser-light guide on the bridge for easy blade positioning
- Easy-to-use push button pendant controls
- 15 hp Arbor Motor
- 14” – 16” inch blade diameter
- Cut up to 3-3/4″ deep and 12′ long
Specifications
| Select up to 3 models to compare key specs | SIERRA®View Layout Drawing | |
|---|---|---|
| Arbor Motor | 15 hp | |
| RPM's | 1,725 | |
| Blade Size | 14" - 16" | |
| Mitering | 0-47° | |
| Cutting Modes | Manual | |
| Table / Tank Options | Powered Tilt + 360° Rotation | |
| Cutting Surface Composition | Concrete | |
| Max Slab Size (L x W) | 144" x 84" | |
| Max Cut Depth | 3.75" | |
| VFD | NA | |
| Footprint including clearance (L x W x H) | 24'3" x 22'6" x 6'6.875" | |
| Weight | 4,000 lbs. + 10,000 lbs. turn table |
